View Points151

4. Lock this layer and make a new one above for the next set

of guidelines. Make another blend with a line along the left

and right side of the canvas space. Enter the number of

steps you need (I’ve used 30 for a 32px grid) Expand the

blend like before and make the guides. Select the guides

and make a 90 degree rotated copy using the Rotate tool.

Make a 180 degree copy of the guide lines.

Draw a horizontal line across the left and right sides of the artboard.

View Points152

5. Lock the second layer and then lock the guides by going to

View > Guides > Lock. Make a new layer for the artwork and

you’re done.

Note: If you are using the multiple window setting for Adobe

Illustrator, you may want to turn off the

guides view on the second window.

Once your custom guides or grid is set,

look at the icon you’re creating. Can

it be broken down into a collection of

shapes? If it can, begin to draw these

shapes onto the artboard.

Checking the Artwork for a

Consistent Style

Once you’ve nished designing your

glyph set, preview them all side by

side on white, mid-gray and black

Adobe Illustrator CS4

If you’re using CS4 and

above, a trick to use with

multiple artboards is the

Move/Copy Artwork with

Artboard. If your guides

are unlocked, you can

duplicate your artboard

as many times as you

need and it will copy the

guidelines to each one.

Lock the guide layers and create a new layer for the artwork.

View Points153

backgrounds. By previewing your icons in this manner, you will be

able to spot any stray pixels or bad anti-aliasing. Sometimes what

looks good against a white background can show up as a light gray

pixel on a black background. With all icon designs, testing against

a variety of background shades is extremely important.

Pathﬁnder

The Pathnder tool will allow you to easily make shapes for glyphs

and icons without having to draw them from scratch. The best use

of the Pathnder is in merging shapes together and cutting parts

out.

Vector icons by tabsicons.com.

View Points154

When I was creating the magnifying

glass, I used an ellipse to make the rim

around the glass, and then with the

offset path function I was able to make

a smaller ellipse for the “glass” which I

then subtracted from the rst circle with

the Pathnder “Exclude” mode. Another

way I used the Pathnder was when I

created the handle for the magnifying

glass, I was able to join it with the top

part by using Option + Clicking the

“Unite” function, which then made a

compound path of the two sections of

the icon.

Adobe Illustrator CS5

If you’re using multiple

artboards for Adobe

Illustrator CS5 and

above, you can name the

artboards and export all

images as a batch. When

the images are exported,

they will have the given

batch name followed by

the individual artboard

names. This will save time

exporting and naming

each ﬁle individually.

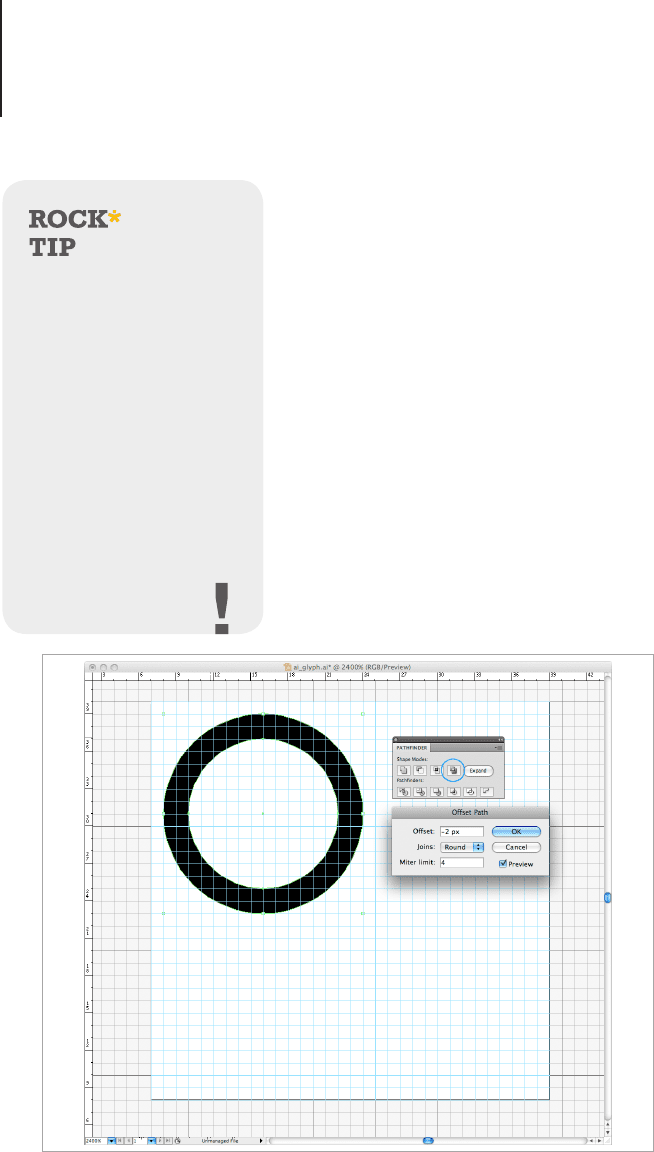

Use exclude to create a hole in the magnifying glass.

View Points155

Scissors and Join Path Tools

This is a great technique for people who may not be comfortable

with using the Pen tool or want to create exact geometric shapes.

It’s a bit like cutting and pasting paper, but in this case it’s cutting

shapes and joining them together with points.

With the magnifying glass, I needed to create a clean join between

the circle at the end and the rectangle of the handle. Normally

on larger icons, I would make a circle and use the Pathnder to

combine it with the rectangle (or simply make a rounded rectangle).

For smaller icons, I nd that the edges of the circle don’t quite align

where I want them to. This is because the pixel boundaries of the

artboard are trying to dictate where the circle is placed according

to the shape as a whole. To get around this problem I drew a circle

as close to the position it needed to be in as possible, then using

the Scissors tool, I cut two points in the side of the circle where I

wanted it to join with the rectangle.

Use the scissors tool to cut and ellipse in half to form the end of the

handle.

View Points156

Using the Direct Selection tool, I select and deleted the part of

the circle I don’t need then repeated the same steps with the end

of the rectangle. Once I had two open shapes, I took the Direct

Selection tool once more and selected the two points I wanted

to join together. Sometimes it can be difcult to single out the

points without selecting other objects, so if this happens use the

Lasso tool and draw around the points. Once the two points were

selected I joined them together using Command + J (you can also

use Object > Path > Join from the menu). Once the half circle was

joined to both sides of the rectangle, I tweaked and moved it into

position along the guidelines.

Using this technique is great for building up shapes, but unlike

Compound Paths and the Pathnder options, shapes cannot be

altered or moved once they are fused together. If you’re using this

technique, remember to make a copy of the shapes before you cut

them so you have a clean copy to go back to if you need it.

Join paths together using Command + J.

View Points157

Shape Builder Tool in CS5

The Shape Builder tool is new to Illustrator CS5 and works a bit like

you would imagine a Pathnder brush would be like. You can use it

to add and subtract areas from overlapping shapes making it quick

and easy to stack shapes together and craft objects with a single

tool.

As an example, I’m working with an expanded version of the

magnifying glass. For the Shape Builder tool to work, it has to

be used on shapes that are not grouped or part of a compound

shape.

The ﬁnal result.

View Points158

Creating shapes is really straight forward, rst select the Shape

Builder tool and mouse click + drag over area that you want to

combine, multiple shapes can be combined with a few clicks.

Areas that are affected will show up in a dotted pattern as you

mouse over the areas.

Create shapes for the layers.

Combine the shapes.

View Points159

Once a group of shapes are merged they may take on a different

appearance. The style of the new shapes will either be the same

one as the rst shape that was selected, or if there’s no style

selected rst then the style that’s ready to be applied to a new

shape will be applied to the merged shape, such as a selected ll

or line style.

To delete shapes, simply hold down the Option key and click or

drag over the areas you want to subtract. This is good for areas

you want to cut out from a shape or to tidy up the outside area of

a shape that has already been made. That’s how simple it is to use

the Shape Builder tool. This technique doesn’t always make neat

paths, so you may need to go around and delete any stray anchor

points.

The style of the new shape is the same as the ﬁrst shape that was

selected.

View Points160

Export Settings

The most popular export options for glyph style icons are

transparent PNG and EPS vector. If you’re exporting PNG from

Adobe Illustrator CS5 and above, make sure the anti-aliasing is set

Working with Vectors in Adobe CS4 and

above

One of the advantages of using Adobe

CS4 and above is how seamlessly

you can work between working

environments. If you’re creating vectors

you`ll notice that it’s extremely easy

to copy the shape from a Photoshop

document and paste it into an Illustrator

document while keeping the editability

of the shape. This trick comes in handy

when you need to make a complex

illustration or icon that requires

Photoshop rendering and vector

shapes. You will ﬁnd that drawing a

complex vector shape with Adobe

Illustrator’s drawing tools is easier than

creating the same shape in Photoshop.

Remove the center of the magnifying glass.
