Chapter 10 Aberration Correction 725

3.3.4 Mirror Correctors

Several schemes for compensating the aberrations of round lenses by

introducing an electron mirror (see Recknagel, 1937, for early work on

electron mirrors) into the optical system have been proposed (Zworykin

et al., 1945; Ramberg, 1949; Kasper, 1968/9). Aberration correction has

now reached the stage at which simultaneous correction of all the aber-

rations that are liable to impair the performance of the instrument in

question must be envisaged: correction of individual aberrations without

considering the effect of the remainder is no longer sufﬁ cient. For this

reason, we describe here only the scheme devised by Preikszas and Rose

(1997) and surveyed by Hartel et al. (2002), intended for the spectromi-

croscope for all relevant techniques (SMART) project at BESSY II and

also adopted for PEEM3 at the Lawrence Berkeley National Laboratory

(Rose et al., 2004; Feng et al., 2005; Schmid et al., 2005). This differs from

earlier schemes, notably that of Rempfer and Mauck (1992) and Rempfer

et al. (1997), in that the beam splitter, the role of which is to separate the

beam incident on the mirror from the beam emerging from it, is nondis-

persive (Figure 10–15); however, for the application for which it was

designed, a low-energy emission microscope, the corrector shown in

Figure 10–15 is effective. A four-electrode mirror, such as that shown in

Figure 10–16, offers enough degrees of freedom to adjust the focal length

and spherical and chromatic aberration coefﬁ cients satisfactorily. As an

example, Preikszas and Rose (1997) show that the spherical and chro-

matic aberration coefﬁ cients can be chosen anywhere inside the shaded

region in Figure 10–17 for a ﬁ xed position of the Gaussian image plane.

Such a mirror could be combined with a dispersion-free magnetic beam

splitter as shown in Figure 10–18a. Figure 10–18b shows the device incor-

porated in the SMART.

Interface

Lens

Electron

Mirror

(Separating)

Magnet

Aberration Corrector

Magnet

Objective

Lens

Fine

Mesh

Final


Shadow

Pattern

Electron

Source

Condenser

Lens

Magnet

Beam Separator


of Source

Overcorrected


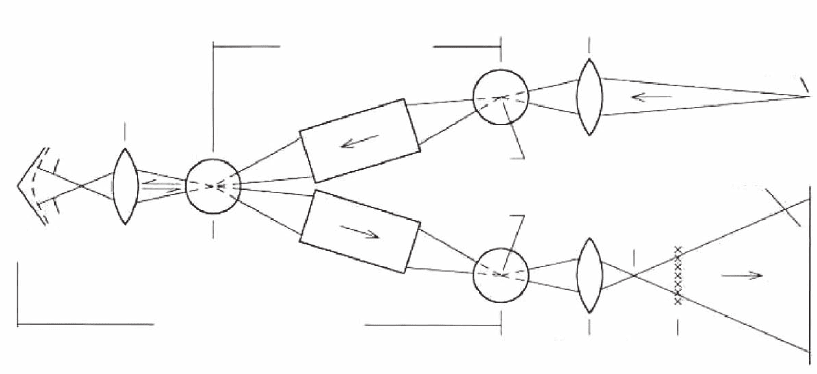

Figure 10–15. The optical system described by Rempfer et al. (1997) for correcting chromatic and

spherical aberration with the aid of an electron mirror. T

and T

are lens triplets, which act as transfer

lenses. The shadow thrown by the ﬁ ne mesh gives a measure of the aberration coefﬁ cients. (After

Rempfer et al., 1997, courtesy of the authors and the Microscopy Society of America.)

726 P.W. Hawkes

3.4 All-Purpose Correctors

In his keynote lecture on “High-Performance Electron Microscopes of

the Future,” delivered at the twelfth European Congress on Electron

Microscopy in Brno, 2000, Rose described a “hexapole planator” capable

of correcting the ﬁ eld curvature and (third-order) astigmatism. Such

correction is essential for projection lithography systems. This pro-

posal was explored in detail by Munro et al. (2001) who, in an impor-

tant paper, ﬁ rst examined the present limitations of projection systems

for charged particles and then analyzed an electrostatic and a magnetic

conﬁ guration free of all third-order geometric aberrations, inspired by

Rose’s hexapole planator.

Subsequently, two very complex correctors have been proposed by

Rose, which are capable of correcting the spherical and chromatic aber-

rations as well as other primary aberrations that could be harmful once

the axial aberrations have been brought under control (Rose, 2003, 2004,

2005). These are the superaplanator and the ultracorrector. The ﬁ rst of

these is suitable for a transmission electron microscope: it consists of

two symmetrical quadrupole quintuplets and three (or more) octopoles

and corrects spherical and chromatic aberration. Very high stability of

the excitations is essential (Rose, 2005), of the order of a few parts in 10

but this is attainable today. Symmetry is exploited to make the device

as easy to use as possible. Thus the quadupole ﬁ elds are symmetric with

respect to the center plane of each quintuplet; conversely, the whole

optic axis

3.6 mm

Figure 10–16. Section of a tetrode mirror. The potentials applied to the elec-

trons determine the focal length and the chromatic and spherical aberration

coefﬁ cients. (After Preikszas and Rose, 1997, courtesy of the authors and

Oxford University Press.)

-70 -10-20-30-50-60

-5

-10

-15

-20

-25

-40

[km]

[m]

Figure 10–17. Behavior of the

aberration coefﬁ cients of the

tetrode mirror of Figure 10–16.

For a ﬁ xed image plane, the

spherical and chromatic aberra-

tion coefﬁ cients fall within the

shaded zone. (After Preikszas

and Rose, 1997, courtesy of the

authors and Oxford University

Press.)

Chapter 10 Aberration Correction 727

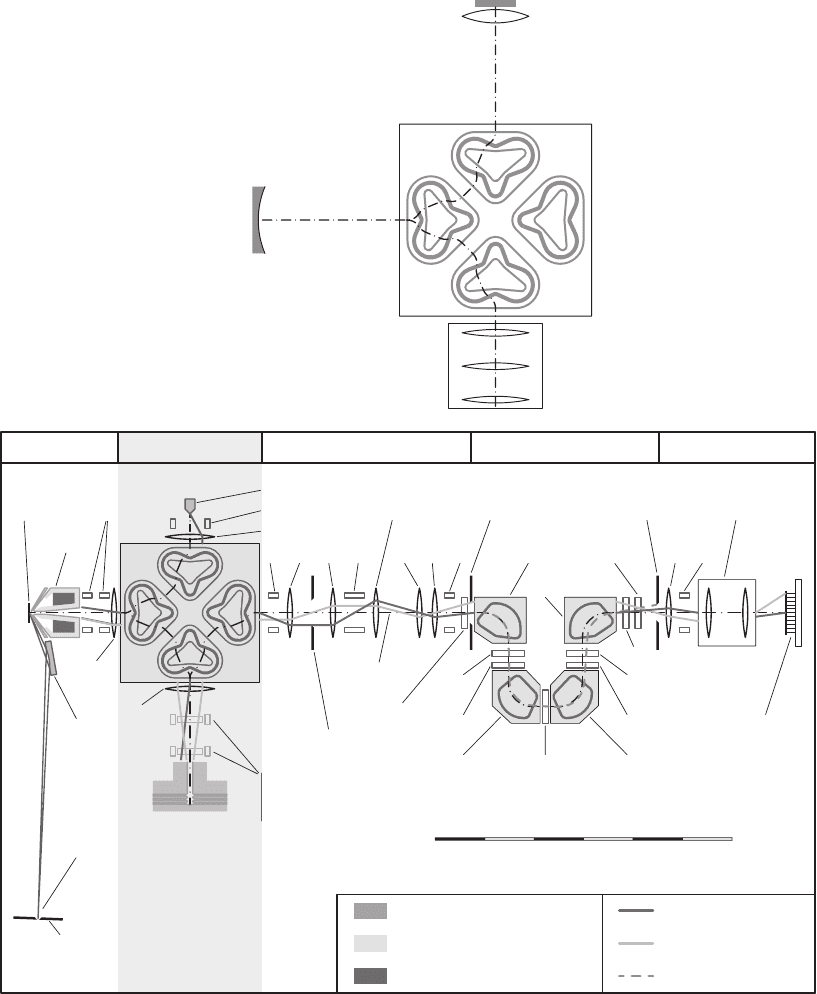

Figure 10–18. Incorporation of the tetrode mirror of Figure 10–16 into a complete system. The beam

separator is free of dispersion. (a) Basic conﬁ guration. (b) The entire layout of the SMART (spectro-

microscope for all relevant techniques). [(a) After Preikszas and Rose, 1997, courtesy of the authors

and Oxford University Press. (b) After Hartel et al., 2002, courtesy of the authors and Elsevier.]

beam

separator

optic axis

specimen and

objective lens

projective

system

tetrode

mirror

optic

axis

electron source

deflector D1

transfer lens T1

field aperture

electric-magnetic

multipole deflector

elements

electron

mirror

beam

separator

Mirror corrector

T3 D5

600 mm

500

400300200

1000

energy selection slit

projector

field

lens L1

objective

lens

Projector/Detector

axial ray

dispersive ray

Energy filterObjective Transfer optics

electric/

magnetic

deflector

specimen

x-ray

mirror

x-ray

illumination

energy selection

slit for x-ray

illumination

quadrupoledipole P1

hexapole H1

apertures

dodecapole

camera system

field ray

coils

electrode surfaces

polepieces

condenser

728 P.W. Hawkes

(double-quintuplet) unit exhibits antisymmetry about its mid-plane

(the plane midway between the two quintuplets). An octopole is placed

in this mid-plane and at the center of each quintuplet (Figure 10–19).

The superaplanator is adequate for the transmission electron

microscope, where no particular attention need be paid to third-

order astigmatism and ﬁ eld curvature, the zone to be imaged being

so small. In electron projection lithography, however, it is desirable to

correct all the primary chromatic and geometric aberrations. This can

in principle be achieved with the conﬁ guration known as the ultra-

corrector. Here, two identical multipole multiplets are used. Each of

these consists of seven quadrupoles and seven octopoles, themselves

disposed symmetrically about the center plane of the multiplet. Once

again, the multiplet ﬁ elds are antisymmetric with respect to the plane

midway between two multiplets in which an additional octopole is

situated (Figure 10–20). Detailed description of the modes of action of

these complex structures is to be found in the work of Rose already

cited. The suitability of these correctors for the Trans mission Electron

Aberration-corrected Microscope (TEAM) project is currently (2005)

being examined (O’Keefe, 2003, 2004; Kabius et al., 2004).

4 Concluding Remarks

If any lesson is to be learned from past attempts to correct spherical

and chromatic aberration, it is that complex systems require a rapid

and efﬁ cient means of adjustment and that beyond a certain degree of

complexity, only computer control offers the necessary speed and ﬂ ex-

ibility. Nevertheless, it remains important to simplify the task as far as

possible and this is achieved by exploiting the symmetry properties.

The intrinsic simpliﬁ cation of the optics provided by the Russian qua-

druplet (or multiplet) has long been known and, more recently, very

a.u.

–1

–2

–3

02 4681012

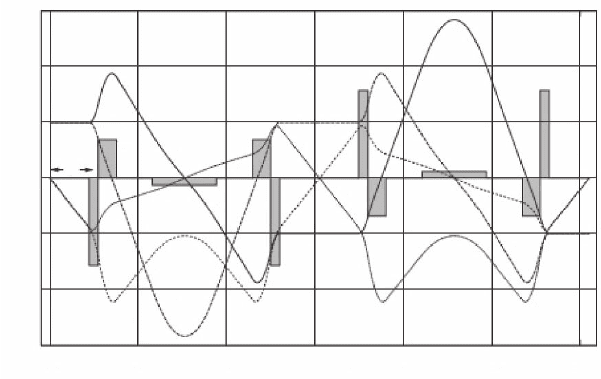

Figure 10–19. The superaplanator. (After Rose, 2005, courtesy of the author

and Elsevier.)

Chapter 10 Aberration Correction 729

ingenious blends of symmetry and antisymmetry have been beneﬁ cial,

or indeed indispensable, in the design of Ω and related types of ﬁ lters,

such as the mandoline ﬁ lter (see Rose and Krahl, 1995, for a thorough

account and Tsuno, 2001, for a schematic appraisal). The symmetry and

antisymmetry on which the multicomponent structures of the supera-

planator and the untracorrector are based not only help us to under-

stand how they work but also render the adjustment more systematic

and less liable to instability.

The quest for aberration correctors has always been fuelled by the

desire for ever higher resolution but, now that correction has been

achieved, microscopists are beginning to realise that such devices will

be useful in many other areas of microscopy. In-situ microscopy

requires lenses with ample space between the polepieces and the coef-

ﬁ cients of spherical and chromatic aberration of such lenses are large.

By correcting these aberrations, in-situ microscopy should be capable

of providing much ﬁ ner information. In the life sciences, chromatic

correction will make it possible to work with thicker specimens. And

no doubt this is only the beginning. The new century is witnessing a

new era in electron microscopy.

5 Appendix I

5.1 Power Series Expansions of Electrostatic Potential and

Vector Potential

The power series expansions used in the foregoing text are identical with

those adopted in Hawkes and Kasper (1989) and are reproduced here

for the reader’s convenience. However, since the work of Rose is very

frequently referred to, the relation between the notation used in his

chapter in Ernst and Rühle (2003) and that employed here is also given.

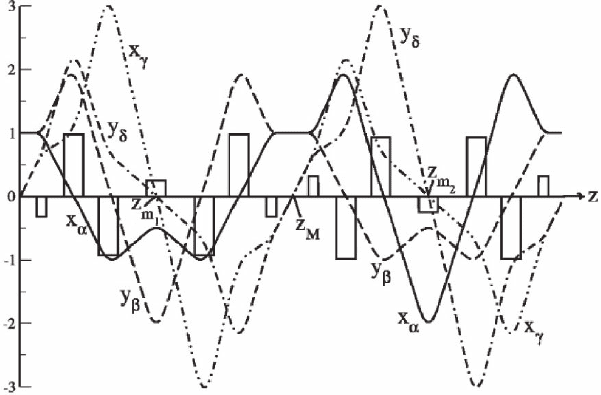

Figure 10–20. The ultracorrector. (After Rose, 2005, courtesy of the author and

Elsevier.)

730 P.W. Hawkes

5.1.1 Expansions for the Electrostatic Potential

In Hawkes and Kasper (1989), the electrostatic potential is written as

Φ xyz z x y z x y xFz yF z,, () () () ()

(

)

=− +

()

′′

()

−−

φφ

22 22

xxyxFyF xypz xyqz

xyx

222

()

′′

(

)

+−

()

−+

()

−

() ()

yyp x yxyq

xxypz yxyq

()

′′

−+

()

′′

−−

()

+−

()

() (zz

xxyypz xyxyqz

)

() ()+−+

()

+−

()

4224

Rose (2003c) uses the expansion

ϕ(,) ()

!( )!

()

[]

lm l

=−

(

)

∞

∑∑

in which

w = x + iy

and [2l] signiﬁ es 2l-fold differentiation with respect to z. An overbar

indicates the complex conjugate.

This leads to the following correspondences:

φ() ()

() , () , ( )

()

() ()

(

Fz Fz F iF

=− =− =− +

ΦΦΦ

112

rri

qz p iq

pz qz

)()

() ()

,() , ( )

() , () ,

222

==+

=− =−

ΦΦ

ΦΦΦ

333

444

24 24

=− +

===+

()

() , () , ( )

() ()

piq

pz qz p iq

and we have written

ΦΦ Φ

i=+

() ()

5.1.2 Expansions for the Vector Potential

In Hawkes and Kasper, the components of the vector potential are

written as

BxyB xyB

xyxyB

=− − +

′′

(

)

+−

′

−−+

′′

−

22 22

2222

() ()

()()

xyB xy x y B

xxyQ yxyP

′

′′′

−−

′

−−

′

()

()()

++−+

′

−−

′

4224

()()xxyyQ xyxyP

Chapter 10 Aberration Correction 731

BxyB xyB

xyxyB

=− +

′′

(

)

+−

′

−−+

′′′

22 22

2222

() ()

()()

xyB xy x y B

xxyP yxyQ

′

−+

′′′

−−

′

+−

′

()

()()

++−+

′

+−

′

4224

()()xxyyP xyxyQ

AxBzyBz xyxB yB

xyQzx

=− − + +

′′

−

′′

+− −

21 1

() () ( )( )

()()yyP z x y x y Q

xyxyP x xy

2222

() ( )( )

() ( )

−+−

′′

−−

QQz

yxyPz xxyyQz

xyxyP

4224

()

()()()()

()

−− + − +

−−

()z

In Rose, the same gauge is adopted and the components of the vector

potential are given by

AA iA

lm l

=+ =

−

(

)

∞

∑∑

() !

!( )!

()

[]

214

121

lm l

=−

(

)

∞

∑∑

Im ( )

!( )!

()

[]

The correspondence is now

112

222

333

444

=− +

()

BiB

PiQ

References

Aken, R.H. van (2005). Low-energy electron beams through ultra-thin foils,

applications for electron microscopy. Proefschrift, Delft.

Aken, R.H. van , Hagen, C.W., Barth, J.E. and Kruit, P. (2002a). Low-energy

foil aberration corrector. Ultramicroscopy 93, 321–330.

Aken, R.H. van, Hagen, C.W., Barth, J.E. and Kruit, P. (2002b). Concept for a

low energy foil corrector. In Proceedings of the 15th International Congress on

Electron Microscopy, Durban (R. Cross, J. Engelbrecht, M. Witcomb, and P.

Richards, Eds.), Vol. 1, 1101–1102.

732 P.W. Hawkes

Aken, R.H. van, Lenc, M. and Barth, J.E. (2004). Aberration integrals for

the low-voltage foil corrector. Nucl. Instrum. Methods Phys. Res. A519,

205–215.

Archard, G.D. (1953). Magnetic electron lens aberrations due to mechanical

defects. J. Sci. Instrum. 30, 352–358.

Archard, G.D. (1954). Requirements contributing to the design of devices used

in correcting electron lenses. Br. J. Appl. Phys. 5, 294–299.

Archard, G.D. (1955). A possible chromatic aberration system for electron

lenses. Proc. Phys. Soc. (London) 68, 817–829.

Archard, G.D. (1958). An unconventional electron lens. Proc. Phys. Soc. (London)

72, 135–137.

Bacon, N.J., Corbin, G.J., Dellby, N., Hrncirik, P., Krivanek, O.L., McManama-

Smith, A., Murﬁ tt, M.F. and Szilagyi, Z.S. (2005). Nion UltraSTEM: an aber-

ration-corrected STEM for imaging and analysis. Microsc. Microanal. 11

(Supplement 2), 1422–1423

Baranova, L.A. and Yavor, S. Ya. (1989). The optics of round and multipole

electrostatic lenses. Adv. Electron. Electron Phys. 76, 1–207.

Baranova, L.A., Read, F.H. and Cubric, D. (2004). Computational simulation of

an electrostatic aberration corrector for a low-voltage scanning electron

microscope. Nucl. Instrum. Methods Phys. Res. A519, 42–47.

Bastian, B., Spengler, K. and Typke, D. (1971). An electric–magnetic octupole

element to correct spherical and chromatic aberrations of electron lenses.

Optik 33, 591–596.

Batson, P.E. (2003). Aberration correction results in the IBM STEM instrument.

Ultramicroscopy 96, 239–249.

Batson, P.E., Mook, H.W. and Kruit, P. (2000). High brightness monochromator

for STEM. In Microbeam Analysis 2000 (D.B. Williams and R. Shimizu, Eds.),

213–214 (Institute of Physics, Bristol).

Batson, P.E., Dellby, N. and Krivanek, O.L. (2002). Sub-ångstrom resolution

using aberration corrected optics. Nature 418, 617–620.

Beck, V. (1977). Experiments with a quadrupole–octupole corrector in a STEM.

Proc. Annu. Meeting EMSA 35, 90–91.

Beck, V.D. (1979). A hexapole spherical aberration corrector. Optik 53,

241–255.

Beck, V. and Crewe, A.V. (1974). A quadrupole octupole corrector for a 100 kV

STEM. Proc. Annu. Meeting EMSA 32, 426–427.

Beck, V. and Crewe, A.V. (1976). Progress in aberration correction in a STEM.

Proc. Annu. Meeting EMSA 34, 578–579.

Benner, G., Orchowski, A., Haider, M. and Hartel, P. (2003a). State of the ﬁ rst

aberration-corrected, monochromatized 200 kV FEG-TEM. Microsc. Micro-

anal. 9 (Supplement 2), 938–939.

Benner, G., Matijevich, M., Orchowski, A., Schindler, B., Haider, M. and Hartel,

P. (2003b). State of the ﬁ rst aberration-corrected, monochromatized 200 kV

FEG–TEM. Microsc. Microanal. 9 (Supplement 3), 38–39.

Benner, G., Essers, E., Huber, B. and Orchowski, A. (2003c). Design and ﬁ rst

results of SESAM. Microsc. Microanal. 9 (Supplement 3), 66–67.

Benner, G., Essers, E., Matijevic, M., Orchowski, A., Schlossmacher, P. and

Thesen, A. (2004a). Performance of monochromized and aberration-

corrected TEMs. Microsc. Microanal. 10 (Supplement 2), 108–109.

Benner, G., Matijevic, M., Orchowski, A., Schlossmacher, P., Thesen, A., Haider,

M. and Hartel. P. (2004b). Sub-Ångstrom and sub-eV resolution with the

analytical SATEM. In Materials Research in an Aberration-Free Environment.

Microsc. Microanal. 10 (Supplement 3), 6–7.

Bernhard, W. (1980). Erprobung eines sphärisch und chromatisch korrigierten

Elektronenmikroskops. Optik 57, 73–94.

Chapter 10 Aberration Correction 733

Bernhard, W. and Koops, H. (1977). Kompensation der Farbabhängigkeit der

Vergrößung und der Farbabhängigkeit der Bilddrehung eines Elektronen-

mikroskops. Optik 47, 55–64.

Bimurzaev, S.B., Serikbaeva, G.S. and Yakushev, E.M. (2003). Electrostatic

mirror objective with eliminated spherical and axial chromatic aberrations.

J. Electron Microsc. 52, 365–368.

Bimurzaev, S.B., Serikbaeva, G.S. and Yakushev, E.M. (2004). Calculation of the

focussing quality of the electrostatic mirror objective free of the third-order

spherical aberration. Nucl. Instrum. Methods Phys. Res. A519, 70–75.

Browning, N.D., Arslan, I., Erni, R., Idrobo, J.C., Ziegler, A., Bradley, J., Dai,

Z., Stach, E.A. and Bleloch, A. (2006). Monochromators and aberration cor-

rectors: taking EELS to new levels of energy and spatial resolution. J. Phys.

Conf. 26, 59–64 [EMAG-NANO 2005]

Burfoot, J.C. (1953). Correction of electrostatic lenses by departure from rota-

tional symmetry. Proc. Phys. Soc. (London) B66, 775–792.

Calvo, M. (2002). Transfer theory and image formation in a time dependent

aberrationless magnetic ﬁ eld lens. Optik 113, 233–240.

Calvo, M. (2004). Optimal resolution of a time-dependent aberrationless mag-

netic lens. Ultramicroscopy 99, 179–187.

Calvo, M. and Lazcano, P. (2002). Theory of a time dependent magnetic lens.

Optik 113, 31–34.

Calvo, M. and Laroze, D. (2002). Aberrations theory of a time dependent mag-

netic ﬁ eld lens. Optik 113, 429–434.

Chand, G., Saxton, W.O. and Kirkland, A.I. (1995). Aberration measurement

and automated alignment of the TEM. In Electron Microscopy and Analysis

1995 (D. Cherns, Ed.), 297–300 (Institute of Physics, Bristol).

Chang, L.Y., Chen, F.R., Kirkland, A.I. and Kai, J.J. (2003). Calculations of

spherical aberration-corrected imaging behaviour. J. Electron Microsc. 52,

359–364.

Chang, L.Y., Kirkland, A.I. and Titchmarsh, J.M. (2006). On the importance of

ﬁ fth-order spherical aberration for a fully corrected electron microscope.

Ultramicroscopy 106, 301–306

Chao, L.C., Orloff, J. and Wang, L. (1997). Spherical aberration corrector using

space charge. J. Vac. Sci. Technol. B15, 2732–2736.

Crewe, A.V. (1978). Is there a future for the STEM? In Proceedings of the Ninth

International Congress on Electron Microscopy, Toronto (J.M. Sturgess, Ed.),

Vol. 3, 197–204 (Microscopical Society of Canada, Toronto).

Crewe, A.V. (1980). Studies on sextupole correctors. Optik 57, 313–327.

Crewe, A.V. (1982). A system for the correction of axial aperture aberrations in

electron lenses. Optik 60, 271–281.

Crewe, A.V. (2002). Some Chicago aberrations. Microsc. Microanal. 8 (Supple-

ment 2), 4–5.

Crewe, A.V. and Kopf, D. (1980a). A sextupole system for the correction of

spherical aberration. Optik 55, 1–10.

Crewe, A.V. and Kopf, D. (1980b). Limitations of sextupole correctors. Optik 56,

391–399.

Crewe, A.V., Cohen, D. and Meads, P. (1968). A multipole element for the cor-

recting of spherical aberration. In Proceedings of the Fourth Regional Conference

on Electron Microscopy, Rome (D.S. Bocciarelli, Ed.), Vol. I, 183 (Tipographia

Poliglotta Vaticana, Rome).

Crewe, A.V., Ruan, S., Tsai, F. and Korda, P. (1995a). The ﬁ rst test on a magneti-

cally focused mirror corrector. In Electron Microscopy and Analysis 1995 (D.

Cherns, Ed.), 301–304 (Institute of Physics, Bristol).

Crewe, A.V., Tsai, F., Korda, F. and Ruan, S. (1995b). The ﬁ rst test on a magneti-

cally focused mirror corrector. In Microscopy and Analysis 1995 (G.W. Bailey,

734 P.W. Hawkes

M.H. Ellisman, R.A. Hennigar and N.J. Zaluzec, Eds.), 562–563 (Jones and

Begell, New York).

Crewe, A.V., Ruan, S., Korda, P. and Tsai, F.C. (2000). Studies of a magnetically

focused electrostatic mirror. I. Experimental test of the ﬁ rst order properties.

J. Microsc. 197, 110–117.

Dellby, N., Krivanek, O.L. and Lupini, A.R. (2000). Progress in aberration-

corrected STEM. Microsc. Microanal. 6 (Supplement 2), 100–101.

Dellby, N., Krivanek, O.L., Nellist, P.D., Batson, P.E. and Lupini, A.R. (2001).

Progress in aberration-corrected scanning transmission electron micros-

copy. J. Electron Microsc. 50, 177–185.

Dellby, N., Krivanek, O.L., Murﬁ tt, M.F. and Nellist, P.D. (2005). Design and

testing of a quadrupole/octupole C

aberration corrector. Microsc. Micro-

anal. 11 (Supplement 2), 2130–2131.

Deltrap, J.M.H. (1964). Correction of spherical aberration with combined quad-

rupole–octopole units. In Proceedings of the Third European Regional Conference

on Electron Microscopy, Prague (M. Titlbach, Ed.), Vol. A, 45–46 (Czechoslo-

vak Academy of Sciences, Prague).

Der-Shvarts, G.V. (1954). [Inﬂ uence of imperfections of the rotational symme-

try of the focusing ﬁ elds on the resolution of the magnetic objectives of

electron microscopes]. Zh. Tekh. Fiz. 24, 859–870.

Dragt, A.J. and Forest, E. (1986). Lie algebraic theory of charged-particle optics

and electron microscopes. Adv. Electron. Electron Phys. 67, 65–120.

Dunin-Borkowski, R.E., Kasama, T., Cervera, L., Twitchett, A.C., Midgeley, P.

A., Robins, A.C., Smith, D.W., Gronsky, J.J., Thomas, C.M., Fischione, P.E.,

Hetherington, C.J.D. and Kirkland, A.I. (2004). Aberration correction: Some

advantages and alternatives. In Materials Research in an Aberration-Free Envi-

ronment. Microsc. Microanal. 10 (Supplement 3), 22–23.

Dymnikov, A.D. and Yavor, S. Ya. (1963). [Four quadrupole lenses as an ana-

logue of an axially symmetric system]. Zh. Tekh. Fiz. 33, 851–858; Sov. Phys.

Tech. Phys. 8, 639–643.

Feng, J., Forest, E., Macdowell, A.A., Marcus, M., Padmore, H., Raoux, S.,

Robin, D., Scholl, A., Schlueter, R., Schmid, P., Stöhr, J., Wan, W., Wei, D.H.

and Wu, Y. (2005). An x-ray photoemission electron microscope using an

electron mirror aberration corrector for the study of complex materials. J.

Phys. Condensed Matter 17, S1339–S1350

Fey, G. (1980). Elektrische Versorgung eines elektronenoptischen Korrektivs.

Optik 55, 55–65.

Fink, R., Weiss, M.R., Umbach, E., Preikszas, D., Rose, H., Spehr, R., Hartel, P.,

Engel, W., Degenhardt, R., Wichtendahl, R., Kuhlenbeck, H., Erlebach, W.,

Ihmann, K., Schlögl, R., Freund, H.-J., Bradshaw, A.M., Lilienkamp, G.,

Schmidt, T., Bauer, E. and Benner, G. (1997). SMART: A planned ultrahigh-

resolution spectromicroscope for BESSY II. J. Electron Spectrosc. Relat. Phenom.

84, 231–250.

Foschepoth, M. and Kohl, H. (1998). Amplitude contrast—a way to obtain

directly interpretable high-resolution images in a spherical-aberration-

corrected transmission electron microscope. Phys. Status Solidi A 166,

357–366.

Freitag, B., Kujawa, S., Mul, P.M., Tiemeijer, P.C. and Snoeck, E. (2004a). First

experimental proof of spatial resolution improvement in a monochromized

and Cs-corrected TEM. In Proceedings of the Eighth Asia–Paciﬁ c Conference on

Electron Microscopy, Kanazawa (N. Tanaka, Y. Takano, H. Mori, H. Seguchi,

S. Iseki, H. Shimada and E. Simamura, Eds.), 18–19 (8APEM Publication

Committee, Uchinada, Ishikawa).

Freitag, B., Kujawa, S., Mul, P.M. and Tiemeijer, P.C. (2004b). First experimental

proof of spatial resolution improvement in a monochromized and Cs-
