Figure A-2—Reciprocating Compressor Data Sheet (SI Units) (continued)

JOB NO. ITEM NO.

RECIPROCATING COMPRESSOR REVISION NO. DATE

API 618 5TH EDITION DATA SHEE

PAGE 16 OF 17 BY

SI UNITS

INSTRUMENTATION (CONT'D)

2 TEMPERATURE MEASUREMENT REQUIREMENTS

THERMO RTD I/S

3 FUNCTION

CAPILLARY

CPL SYS SYS SYS

4 LUBE OIL INLET TO OUT OF FRAME

( ) ( )

5 LUBE OIL INLET TO OUT OF COOLER

( ) ( )

6 MAIN JRNL BEARINGS (THERMOCOUPLES OR RTD'S ONLY)

( ) ( )

7 MOTOR BEARING(S) (THERMOCOUPLES OR RTD'S ONLY)

( ) ( )

8 CYL. COOLANT MANIFOLD: INLET OUTLET

( ) ( )

9 CYL. JKT. COOLANT: INLET OUTLET EA. CYL

( ) ( )

10 PROCESS GAS: INLET DISCH. EACH CYL

( ) ( )

11 INTERCOOLER(S) INLET GAS COOLANT

( ) ( )

12 OUTLET GAS COOLANT

( ) ( )

13 AFTERCOOLER: INLET GAS COOLANT

( ) ( )

14 OUTLET GAS COOLANT

( ) ( )

15 PKG COOLANT INLET OUTLET (

) ( )

16 PRESS. PGK CASE, CYL PIST ROD (THRM'CPLS OR RTD'S ONLY)

( ) ( )

17 COMPRESSOR VALVES

SUCT. DISCH. TC'S OR RTD'S ONLY

( ) ( )

20 ALARM & SHUTDOWN SYSTEM REQ'MTS

NOTE: ALARM & SHUTDOWN DEVICES SHALL BE INDIVIDUALLY SEPARATE

ANNUNCIATION POINTS

22 ALARM DEVICES: TRANSMITTER SWITCH

ALARM SHUTDOWN

23 SHUTDOWN DEVICES TRANSMITTER SWITCH

IN IN CTL IN IN CTL

TOTAL

PNL ROOM PNL ROOM

NO.

SHUT BY PANEL BY PANEL

26 FUNCTION

ALARM DOWN MFR OTH'RS MFR OTH'RS

POINTS

27 LOW LUBE OIL PRESS. @ BEARING HEADER

( ) ( )

HIGH LUBE OIL ' P

P ACROSS FILTER

( ) ( )

29 LOW LUBE OIL LEVEL, FRAME

( ) ( )

30 AUX LUBE OIL PUMP, FAIL TO START

( ) ( )

31 CYL LUBE SYSTEM PROTECTION

( ) ( )

32 COMPR. VIBRATION, SHUTDOWN ONLY

( )

33 VIBRATION, W/ CONTINUOUS MONITORING

( ) ( )

34 ROD DROP DETECTOR, CONTACT TYPE(1/CYL)

( ) ( )

35 ROD DROP PROXIMITY PROBE (1/CYL)

( ) ( )

36 OIL TEMP OUT OF FRAME

( ) ( )

37 HIGH GAS DISCH. TEMP EACH CYLINDER

( ) ( )

38 HIGH JACKET COOLANT TEMP., EA. CYL

( ) ( )

39 LOW SUCTION PRESS., FIRST STG INLET

( ) ( )

40 HI DISCH. PRESS. FINAL EA STG

( ) ( )

HI CYL. GAS ' P, EACH STAGE ( ) ( )

42 HI LIQ. LEV., EA. MOISTURE SEPARATOR

( ) ( )

43 LOW PURGE GAS PRESS, DISTANCE PIECE(S)

( ) ( )

44 HI X-HD PIN TEMP

( ) ( )

45 PRESS PKG CASE (PISTON ROD TEMP)

( ) ( )

47 TOTAL NUMBER OF ANNUNCIATION POINTS

48 SWITCH CONTACT OPERATION NOTE: EACH SWITCH SHALL BE MINIMUM SPDT ARRANGEMENT

49 ALARM CONTACTS SHALL: OPEN ( DE-ENER.) TO SOUND ALARM & BE ENERGIZED WHEN COMPR. IS IN OPERATION

50 CLOSE (ENERGIZE) TO SOUND ALARM & BE DE-ENERGIZED WHEN COMPR. IS IN OPERATION

51 SHUTDOWN CONTACTS SHALL: OPEN ( DE-ENERGIZED) TO SHUTDOWN & BE ENERGIZE WHEN COMPR. IS IN OPERATION

52 CLOSE (ENERGIZE) TO SHUTDOWN & BE DE-ENERGIZE WHEN COMPR. IS IN OPERATION

53 REF: 7.6.6.2 FOR MINIMUM RECOMMENDED PROTECTION REQUIREMENTS

PANEL

MOUNTED

LOCALLY

MOUNTED

GAUGE W/

Revision

RECIPROCATING COMPRESSORS FOR PETROLEUM, CHEMICAL, AND GAS INDUSTRY SERVICES 111

Provided by IHS under license with API

Licensee=IHS Employees/1111111001, User=Japan, IHS

Not for Resale, 01/01/2008 21:15:45 MST

No reproduction or networking permitted without license from IHS

--```,`,,,,`,``,,```,`,,`,,,,`-`-`,,`,,`,`,,`---

Figure A-2—Reciprocating Compressor Data Sheet (SI Units) (continued)

JOB NO. ITEM NO.

RECIPROCATING COMPRESSOR

REVISION NO. DATE

API 618 5TH EDITION DATA SHEE

PAGE 17 OF 17 BY

SI UNITS

2 MISCELLANEOUS INSTRUMENTATION

SIGHT FLOW IND. (COOLANT ONLY) ()

FOR: INTERCOOLER(S) AFTER CLR OIL COOLER

4 CYL JACKET COOLANT ROD PRESS. PKG COOLANT

5 PNEUMATIC PRESSURE TRANSMITTERS

()

FOR:

6 PRESSURE TRANSMITTERS (ELEC. OUTP.)

()

FOR:

7 PNEUMATIC LEVEL TRANSMITTERS

()

8 ALARM HORN & ACKN'LMT TEST BUTTON

()

9 CONDUIT & WIRING W/JUNCT. BOXES

()

10 TEST VALVES

()

FOR:

11 DRAIN VALVES

()

FOR:

12 GAUGE GLASS(ES)

()

FOR:

13 TACHOMETER

()

SPEED RANGE TO r/min

14 CRANKSHAFT KEY PHASER

()

FOR:

15 AND TRANSDUCER

()

17 SEPARATE LUBE OIL CONSOLE INSTRUMENTATION:

PURCH. TO LIST REQ'MTS IN ADDITION TO ANY ABOVE REQ'MTS

()

24 SEPARATE COOLING WATER CONSOLE INSTRUMENT:

PURCH. TO LIST REQ'MTS IN ADDITION TO ANY ABOVE REQ'MTS

()

31 RELIEF VALVES

LOCATION BY

MANUFACTURER TYPE SIZE SETTING

()

43 NOTES: SEE MOTOR DATA SHEET FOR ADDITIONAL MOTOR INSTRUMENTATION REQUIREMENTS

44 FOR TURBINE DRIVERS USE APPLICABLE API DATA SHEETS

45 FOR GEAR REDUCERS USE APPLICABLE API DATA SHEETS

46 ELECTRICAL & INSTRUMENTATION CONNECTIONS SHALL BE MADE DIRECTLY BY THE PURCHASER TO INDIVIDUAL

47 INSTRUMENTS ON THE COMPRESSOR

48 ADDITIONAL INSTRUMENTATION REMARKS/SPECIAL REQUIREMENTS:

INSTRUMENTATION (CONT'D)

Revision

(CON-

SOLES)

112 API STANDARD 618

Provided by IHS under license with API

Licensee=IHS Employees/1111111001, User=Japan, IHS

Not for Resale, 01/01/2008 21:15:45 MST

No reproduction or networking permitted without license from IHS

--```,`,,,,`,``,,```,`,,`,,,,`-`-`,,`,,`,`,,`---

113

Annex B

(informative)

Capacity Rating and Tolerance

The content of this informative annex refers to 3.18, 3.30, 3.48, 6.13, and 6.1.18.

This annex discusses capacity sizing of reciprocating compressors and the intent of the term “no negative tolerance (NNT)” as

used in this standard to apply to the “normal capacity” of reciprocating process compressors.

The “normal operating point” is defined by the purchaser and is normally the minimum capacity at the specified pressures and

temperatures required to meet the process conditions with no negative tolerance permitted (this is typically the process flow sheet

material balance capacity). The purchaser must complete the data sheets with a capacity, and identify the operating conditions as

“normal” or “alternate.” The purchaser must also provide information on the data sheets about any proposed alternate operating

conditions. The sizing of the compressor must take into account all specified operating conditions, and the manufacturer’s

standard tolerances so that the resulting full-load capacity will never be less than the capacity at the certified operating point.

The compressor “manufacturer’s rated capacity” is that capacity to which the compressor is sized by the manufacturer. The

acceptable standard reciprocating compressor industry tolerance of ±3% is applicable to both the capacity and power at the

compressor shaft. Because of this tolerance on capacity, the manufacturer typically will increase the normal capacity by 3% prior

to sizing the compressor. Frequently, the normal capacity divided by 0.97 equals the manufacturer’s rated capacity. However, due

to the alternate operating conditions, in some cases the manufacturer’s rated capacity may be higher. Since this standard

establishes tolerances on normal capacity, and not the manufacturer’s rated capacity, the purchaser and the manufacturer should

ensure that they have a mutually understood tolerance on the manufacturer’s rated capacity.

“Total power at the compressor shaft,” as used in the data sheets under the manufacturer’s rated capacity, is intended to mean the

power required at the compressor input shaft.

“Total power including power transmission losses” is the total power at the compressor shaft plus all losses in the drive system

and is used for selecting the driver.

The tolerance on the manufacturer’s certified shaft power is ±3% and is calculated on the basis of manufacturer’s rated capacity.

Using the manufacturer’s rated capacity and corresponding power, the proper relationship of power to unit capacity exists and

will agree with calculations. (For example kilowatts per hundred cubic meters per hour or brake horsepower per hundred cubic

feet per minute).

Provided by IHS under license with API

Licensee=IHS Employees/1111111001, User=Japan, IHS

Not for Resale, 01/01/2008 21:15:45 MST

No reproduction or networking permitted without license from IHS

--```,`,,,,`,``,,```,`,,`,,,,`-`-`,,`,,`,`,,`---

Provided by IHS under license with API

Licensee=IHS Employees/1111111001, User=Japan, IHS

Not for Resale, 01/01/2008 21:15:45 MST

No reproduction or networking permitted without license from IHS

--```,`,,,,`,``,,```,`,,`,,,,`-`-`,,`,,`,`,,`---

115

Annex C

(informative)

Piston Rod Runout

C.1 Scope

This annex describes a procedure that can be used to determine expected piston rod runout in horizontal reciprocating

compressors with traditional crosshead/piston rod/piston construction. Piston rod runout, using precision dial indicators, is a

measurement criterion used to determine piston rod running alignment variations in both horizontal and vertical positions relative

to cylinder and crosshead alignment. While other alignment methods, such as optical, laser, or wire, may be used to determine

initial assembly alignment, use of dial indicators on the piston rod verifies alignment by determining the true running variation of

the rod as it passes through its stroke. Once factory alignment has been verified by correct rod runout measurement, and so

recorded, it is a convenient field method of verifying alignment after installation and routine maintenance.

Manufacturers with other types of compressors, having unique or proprietary construction, may require different methods for

calculating expected cold vertical rod runout.

C.2 Definition

Piston rod runout is defined in 3.40.

C.3 Maximum Allowable Runout

C.3.1 Acceptable limits of rod runout and shop test requirements and records are discussed in 6.1.28.

C.3.2 The maximum allowable horizontal runout at any side position of the dial indicators shall be zero, plus or minus

0.00015 mm/mm (0.00015 in./in.) of stroke, up to a maximum of 0.064 mm (0.0025 in.).

C.3.3 The maximum allowable vertical runout at any top position of the dial indicators shall be the calculated runout, in

millimeters (thousandths of an inch), at that specific dial indicator position based on length of stroke, length of rod, rod sag, and

the difference between the crosshead and cylinder running clearances, plus or minus a permissible limit of ±0.015% of stroke to

allow for geometric and fit tolerances of all parts that may contribute to slight parallel offset and angular misalignment.

See remainder of this annex for an example of vertical runout calculations based on a suggested procedure.

C.4 General

C.4.1 Piston rod runout is always an inspection requirement during the shop assembly of a new compressor to verify alignment.

It is almost always a purchaser’s witness test requirement of alignment to determine that geometric and fit dimensions of all parts

are correct, and that these parts have been properly assembled with parallel offset and/or angular misalignment within the

established runout limits. In addition, as part of new compressor field installations, rod runout is always checked and verified

against shop readings. It is also a requirement of normal compressor maintenance, especially after overhaul and reassembly of the

cylinders.

C.4.2 Runout must be checked in both horizontal and vertical directions. It is best to check runout at both the crosshead and at

the cylinder to verify that the crosshead and piston are running true in the crosshead guide and cylinder respectively.

C.4.3 While rod runout can be used to verify alignment, it should not be used to align compressor cylinders during the original

assembly of the machine. If the measured cold runout exceeds the expected value, actual running clearances and the runout

calculation should be checked. It is also recommended that all assembled components and fits be checked to confirm they are

within the tolerances required for size, squareness, parallelism, and concentricity.

C.4.4 After assembly and in the field, compressor cylinders, distance pieces, and crosshead guides should never be forced into

positions of harmful stresses in an attempt to satisfy rod runout requirements.

C.4.5 Due to the piston rod length, vertical runout must include the effect of rod sag when type B, C, and D distance pieces are

used. In the case of older units, or new units with no distance piece, or with the very short type A distance piece, rod sag may be

so minimal that it can be ignored and the basics of Figures C-1 and C-2 can be used to compute expected vertical rod runout for

perfect alignment.

Provided by IHS under license with API

Licensee=IHS Employees/1111111001, User=Japan, IHS

Not for Resale, 01/01/2008 21:15:45 MST

No reproduction or networking permitted without license from IHS

--```,`,,,,`,``,,```,`,,`,,,,`-`-`,,`,,`,`,,`---

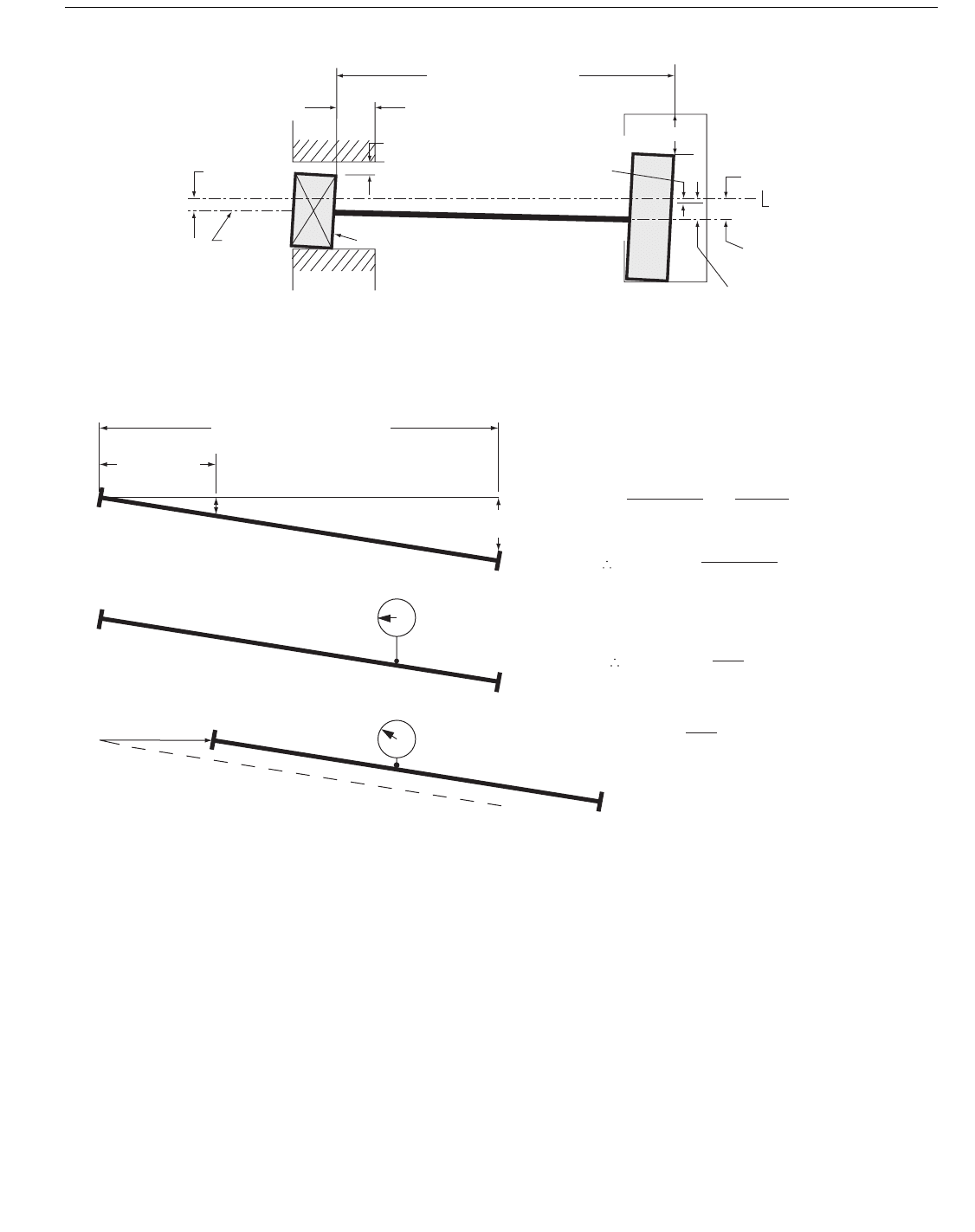

Figure C-1—Basic Geometry with Cold Vertical Runout
