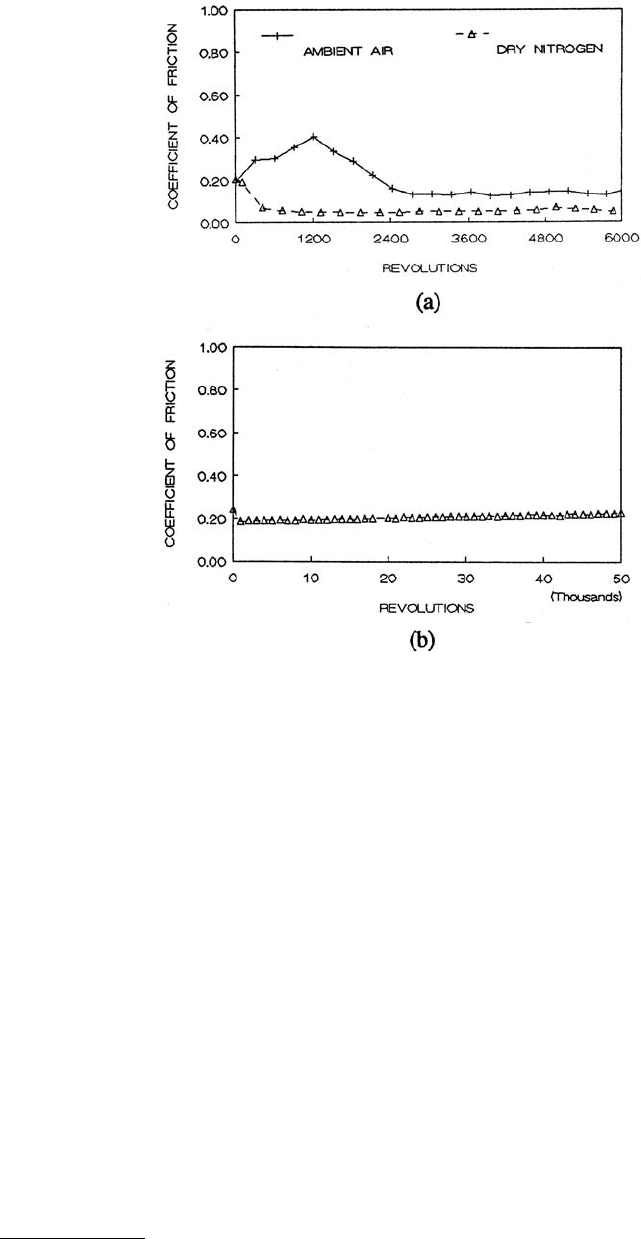

FIGURE 16.21 Coefﬁcient of friction as a function of number of sliding revolutions in ambient air for (a) Si(111)

pin in ambient air and dry nitrogen and (b) dry-oxidized silicon pin in ambient air. (From Bhushan, B. et al., 1993b,

J. Mater. Res. 8,1611–1628.)

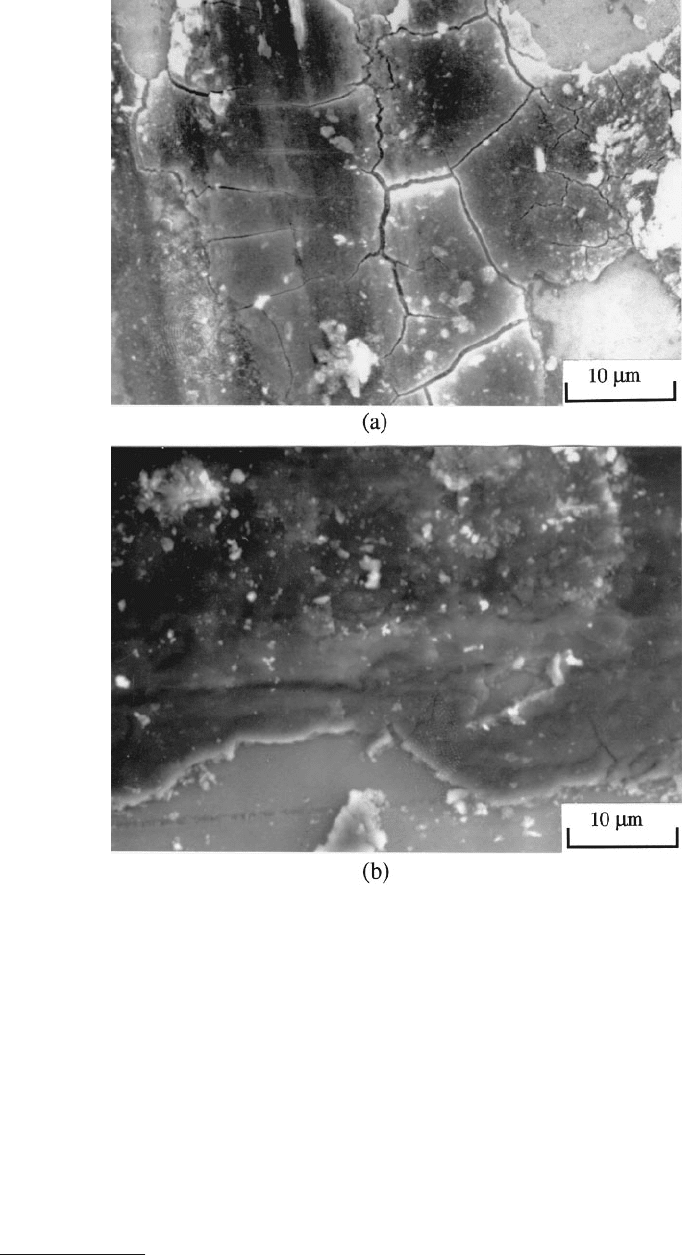

FIGURE 16.22 SEM of Si(111) after sliding against a magnetic disk in (a) ambient air for 6000 cycles and in (b) dry

nitrogen after 15,000 revolutions.

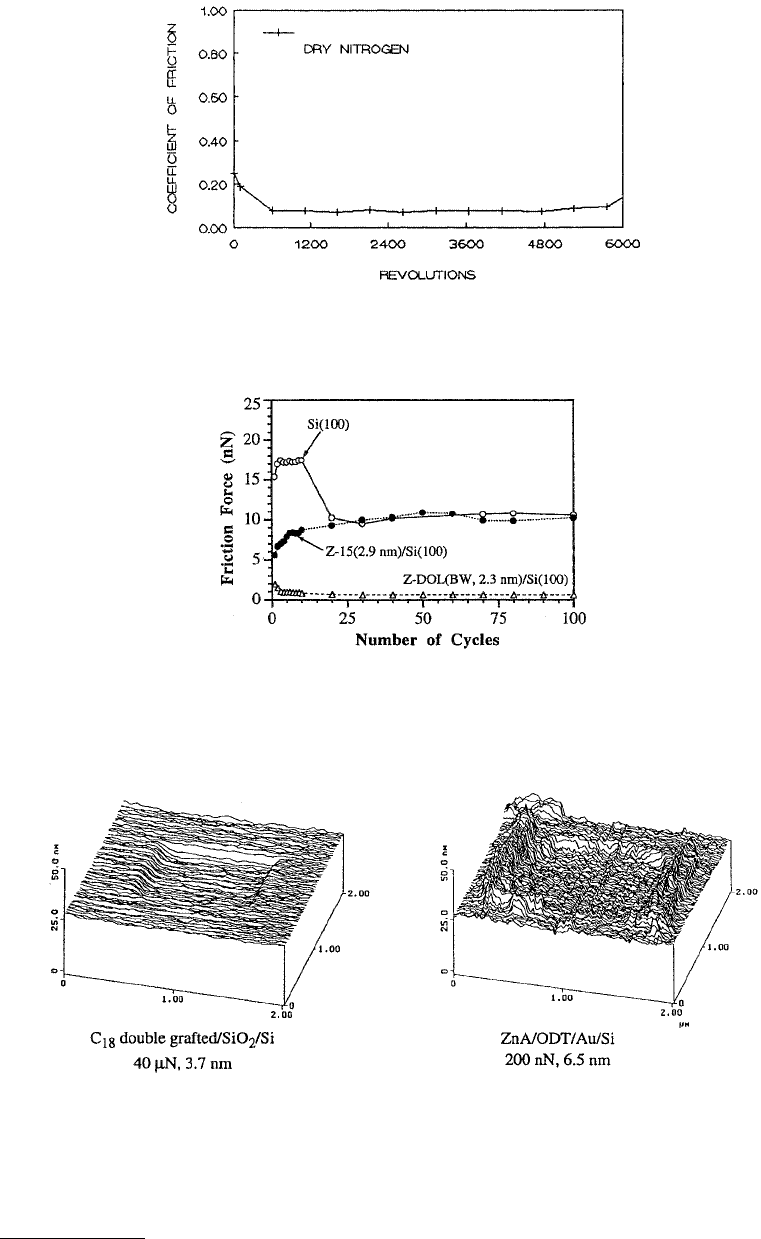

FIGURE 16.23 Variation of the coefﬁcient of friction with number of revolutions in dry nitrogen for a DLC-coated

silicon pin sliding against a magnetic disk. (Venkatesan and Bhushan, 1993, Adv. Info. Storage Syst. 5, 241–257).

FIGURE 16.24 Friction force as a function of number of cycles using an Si

tip at 300 nN normal load for

unlubricated and lubricated silicon samples. (From Koinkar, V.N. and Bhushan, B., 1996, J. Appl. Phys. 79, 8071–8075.

With permission.)

FIGURE 16.25 Surface proﬁles showing worn region after one scan cycle for self-assembled monolayers of octodecyl

silanol (C

) (left) and zinc arachidate (ZnA) (right). Normal load and wear depths are indicated.
